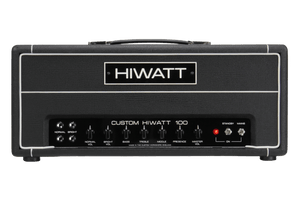

HIWATT DR103 Head Custom 100W Head "Free Shipping in the USA"

HIWATT DR103 Head Custom 100W Head "Free Shipping in the USA"

wattage100WchannelsNormal, Brightinputs
  • Normal Hi
  • Normal Low
  • Bright Hi
  • Bright Low
output2 x 1/4" Speaker Outpreamp valves4 x ECC83 (12AX7)output valves4 x EL34controls
  • Normal Volume
  • Bright Volume
  • 3-Band EQ shared by both channels — Bass, Treble, Middle
  • Presence — Treble Boost shared by both channels
  • Master Volume
  • Standby — On/Off
  • Mains — On/Off
impedanceSwitchable using Impedance Selector on the rear panel — 4 Ω, 8 Ω, or 16 Ωheight255mm (~11")width630mm (~25")depth280mm (~12")weight21 Kg (~47 lbs)
  • Road Ready — Rugged 18mm Birch-Ply Construction
  • Band Ready — ’Soak Tested’ by our Custom Shop Technicians
  • Touring Ready — World Voltage and Impedance Selectors
  • Based on Hiwatt’s original circuit designed by Dave Reeves.
  • Original Partridge spec English transformers.
  • Meticulously hand-wired to Harry Joyce’s exacting military standards.
  • 🇬🇧 Proudly manufactured in the Hiwatt Custom Shops.
